On VM Deployment Architecture (GCP)

This page describes the infrastructure and application architecture of CodeMie On VM on GCP.

Infrastructure Overview

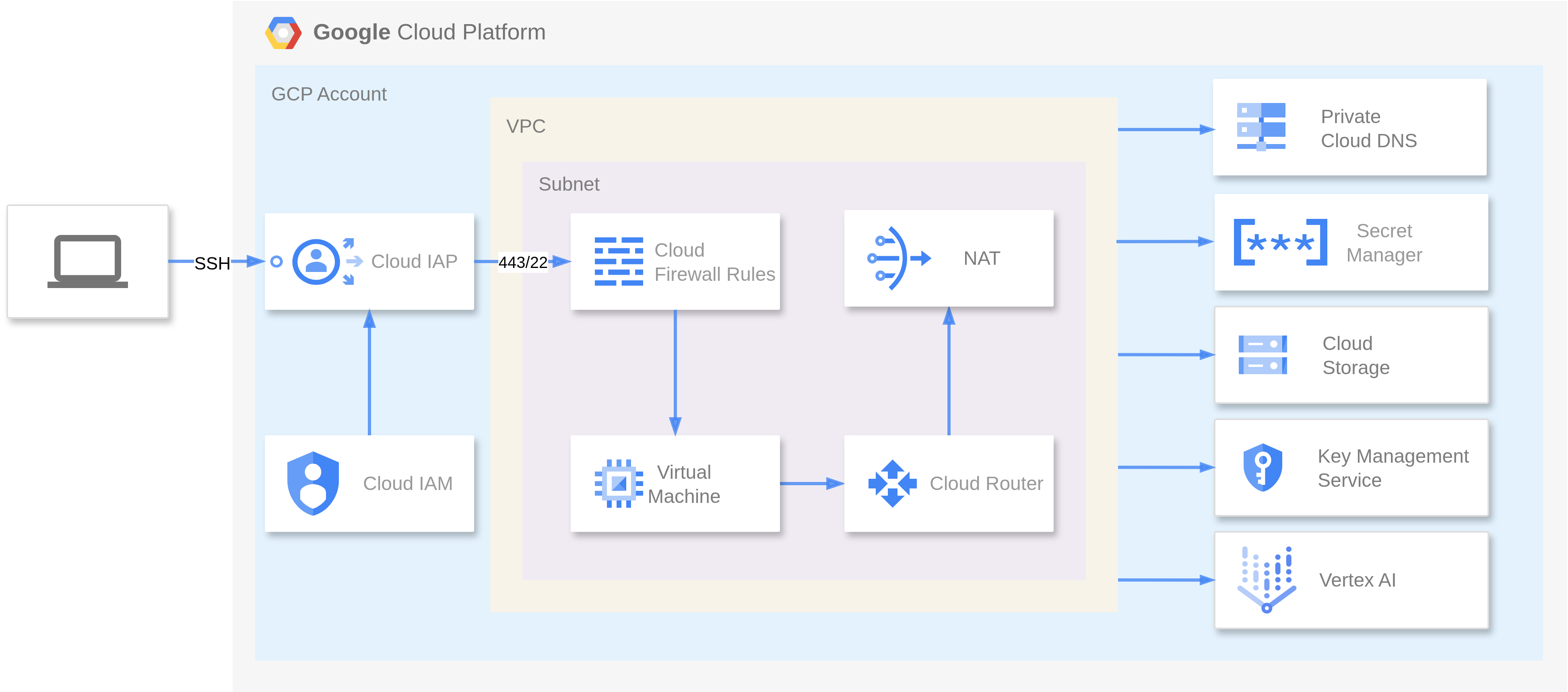

GCP On VM Infrastructure Architecture

CodeMie On VM runs on a single GCE VM with supporting GCP services. Terraform provisions the following resources:

Resource	Purpose
GCE VM (n2-highmem-4)	Single VM running Docker Compose (4 vCPU, 32 GB RAM)
VPC / Subnet	Isolated network for the VM
Firewall Rules	Controls inbound/outbound traffic to the VM
GCS Bucket	Persistent storage for user data (repos, files)
Cloud KMS Key	Encryption key management for storage data
Cloud DNS Private Zone	Custom domain resolution (when `TF_VAR_platform_domain_name` is set)
IAP (Identity-Aware Proxy)	Secure SSH access to the VM without exposing a public IP
Secret Manager	Stores the SSH private key for VM access

Mode	Configuration	Access
Private IP (default)	`TF_VAR_platform_domain_name` empty	VM private IP, access via VPN or IAP
Domain	`TF_VAR_platform_domain_name="codemie.internal"`	Creates Cloud DNS private zone, access via name

All CodeMie services run as Docker containers on the GCE VM, orchestrated by Docker Compose.

Docker Compose Services

Shared services (both profiles):

Service	Image	Purpose
postgres	pgvector/pgvector:pg17	Primary database for application data
elasticsearch	elasticsearch:8.x	Document storage and search for Data Sources
kibana	kibana:8.x	Log visualization and analytics for Elasticsearch
mcp-connect	codemie-mcp-connect-service	Connector for MCP servers
nginx	nginx:1.31-alpine	Reverse proxy, TLS termination

OSS profile:

Service	Purpose
codemie-oss	API server with built-in local authentication
codemie-ui-oss	Web frontend

Enterprise profile:

Service	Purpose
codemie	API server
codemie-ui	Web frontend
keycloak	Identity provider (SSO, OIDC)
oauth2-proxy	Authentication proxy in front of nginx
litellm	LLM proxy for model routing and key management
nats	Messaging for plugin engine
nats-auth-callout	NATS authentication service
mermaid-server	Diagram rendering
